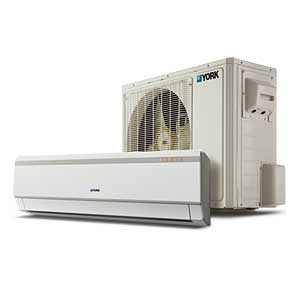

Affinity 22 Single Zone Mini-Split Heat Pumps

Space-saving, energy-saving York® Ductless Mini-Split Air Conditioners and Heat Pumps are the perfect solution for homes without ductwork—and for room additions or remodels. You can eliminate the cost and hassle of installing ducts. And you can dial in the exact degree of temperature control you need where you need it—the perfect way to minimize electricity costs.

  • Variable Frequency Rotary Compressor Twin rotary inverter compressor on all models features high efficiency operation.
  • Low Ambient Cooling Operation Down to 5 °F This feature allows for a space to be air-conditioned even in outdoor temperatures as low as 5 °F
  • Defrost Control Defrost cycle is automatically enabled if there is a build-up of frost on the outdoor coil.
  • Air Deflection Louvers Horizontal louvers default to the cooling or heating position when the unit is operating. Horizontal louvers can be set to a preset oscillating range or fixed position from the wireless remote control.
  • I FEEL Function When I FEEL is activated, the system will satisfy the cooling or heating temperature set point where the remote control is located. When I FEEL is deactivated, the system will satisfy the cooling or heating temperature set point where the indoor unit is located. This feature provides homeowners with optimum comfort whether they are near or far from the indoor unit.
  • Hot Heat Pump (cold air prevention) In heating mode, the indoor fan will be delayed from 1 to 3 minutes to allow refrigerant to warm up and avoid cold blow.
MODELTypeUnit Match or Number of ZonesClg Cap MBtuHSEERHtg Cap MBtuHHSPFRefrigerant ConnectionsDimensions HxWxDWeight
DHPS09CSM42Q1Outdoor DHPS09NWM42Q1 0.0 0.0 0.0 0.0 21.2x33.3x12.6 81
DHPS12CSM42Q1Outdoor DHPS12NWM42Q1 0.0 0.0 0.0 0.0 23.2x33.3x12.6 89
DHPS18CSM42Q1Outdoor DHPS18NWM42Q1 0.0 0.0 0.0 0.0 29.1x40.5x18.5 100
DHPS24CSM42Q1Outdoor DHPS24NWM42Q1 0.0 0.0 0.0 0.0 31.1x38.6x16.8 132
DHPS09NWM42Q1Wall DHPS09CSM42Q1 9.0 27.0 9.8 9.0 1/4-3/8 11x33.3x7 22
DHPS12NWM42Q1Wall DHPS12CSM42Q1 12.0 25.0 13.0 9.0 1/4-3/8 11x33.3x7 22
DHPS18NWM42Q1Wall DHPS18CSM42Q1 18.0 21.0 19.2 9.8 1/4-1/2 12x37x8 29
DHPS24NWM42Q1Wall DHPS24CSM42Q1 24.0 21.0 24.6 9.2 1/4-5/8 12.4x42.4x12.9 35

Warranty Information

  • Compressor for 72 months -
  • All Parts for 24 months -
